TX/RX 28-97-01B 23cm Duplexer

FOR SALE AS IS

CONDITION:

This duplexer is factory tuned for a 20Mhz split where TX is 1292.900MHz. and RX is 1272.900MHz. which is a common FM repeater pair in most parts of the U.S.

The external cabinet shows no signs of wear and tear aside from tarnish on the connectors as they have always been boxed. All factory labels are in place and perfectly legible, all of which can be seen in the photos below.

I had bought this unit for a 23cm repeater project that never got on the air.

Asking $650USD shipped within CONUS via UPS

Payment via USPS Money Order or Cashiers Check in addition to cash for local (Hendersonville, NC) pickup will be accepted.

Interested parties can reach me via e-mail at n2ckh.com@gmail.com or via phone at 1-828-393-7385.

SPECIFICATIONS:

Frequency Range (MHz): 1215 - 1300 MHz

VSWR: 1.3:1

Impedance: 50 ohms

Minimum Freq. Separation (MHz): 12

Power Rating (Watts): 125

Isolation (dB): 100

Insertion Loss (dB): 1.0

Temperature Range (°C): -30 to +60°C

No. of Cavities: 4

Cavity Size [inches]: 4" dia.

Dimensions H x W x D (inches) 5.25 x 19 x 10

Tx & Rx Port Connectors: N

Antenna Connectors: N

Shipping Weight (lbs): 13

DOCUMENTATION

Here are factory documents on the 28-97-01B duplexer:

28-97-01B data sheet

PHOTOS

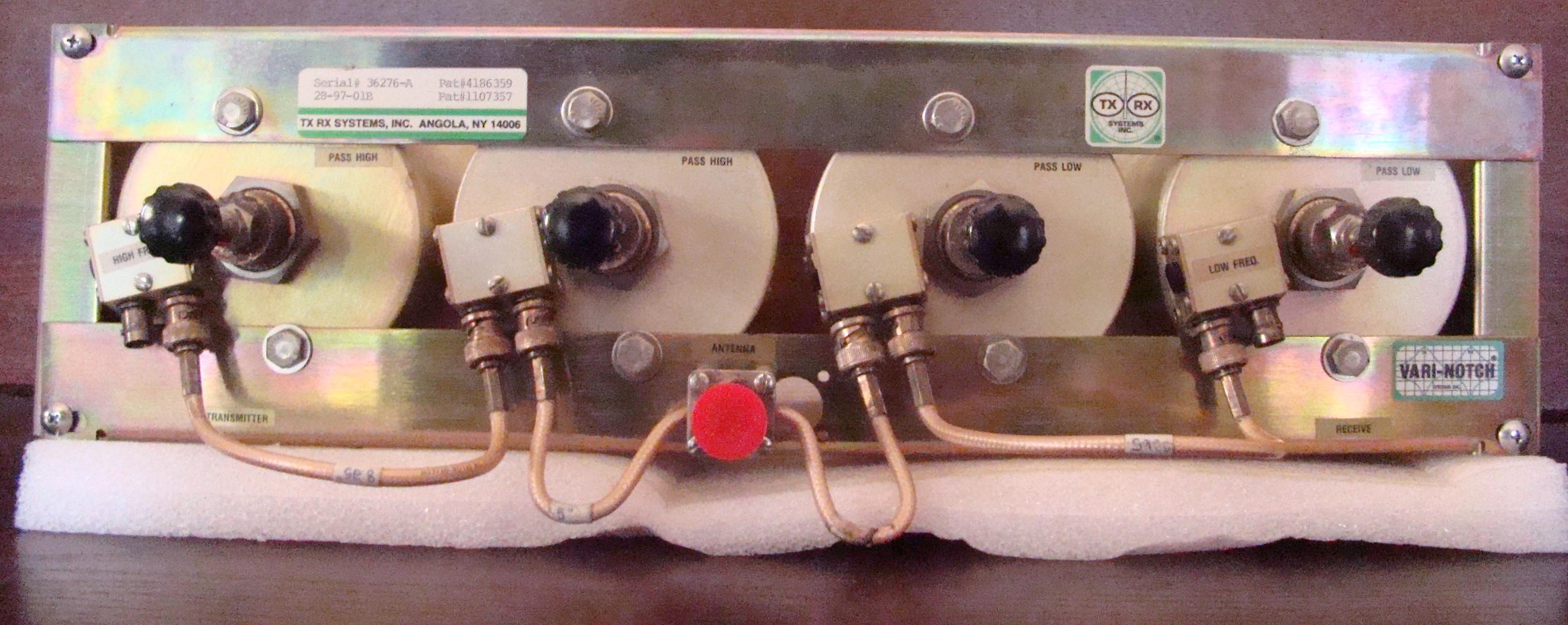

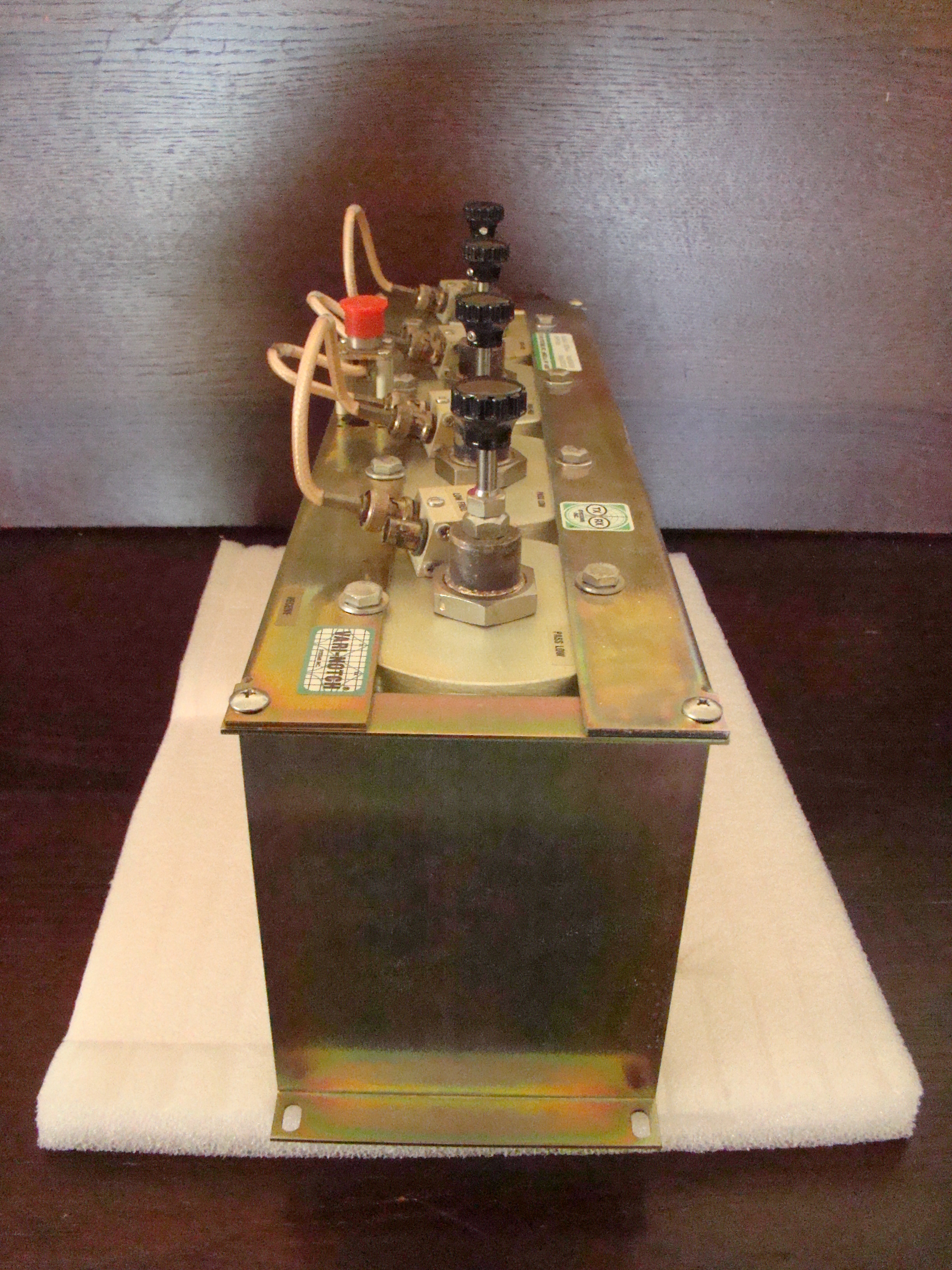

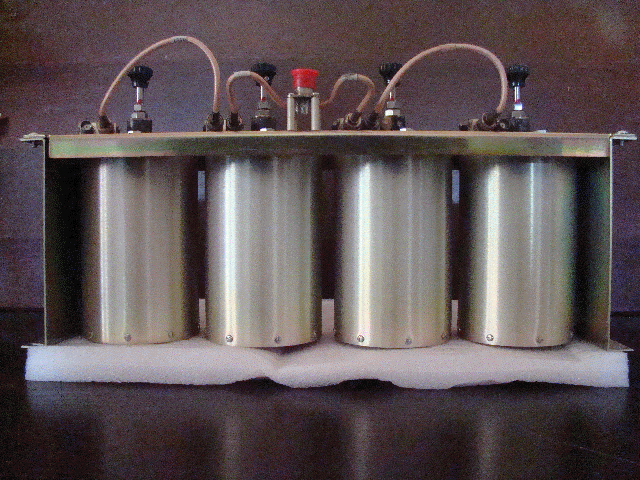

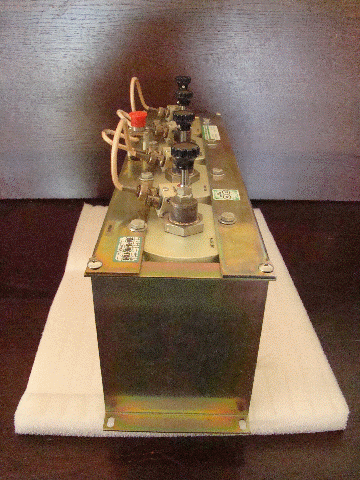

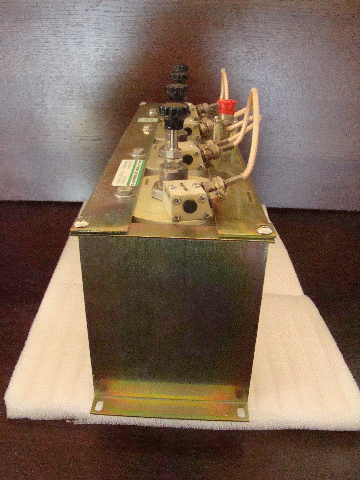

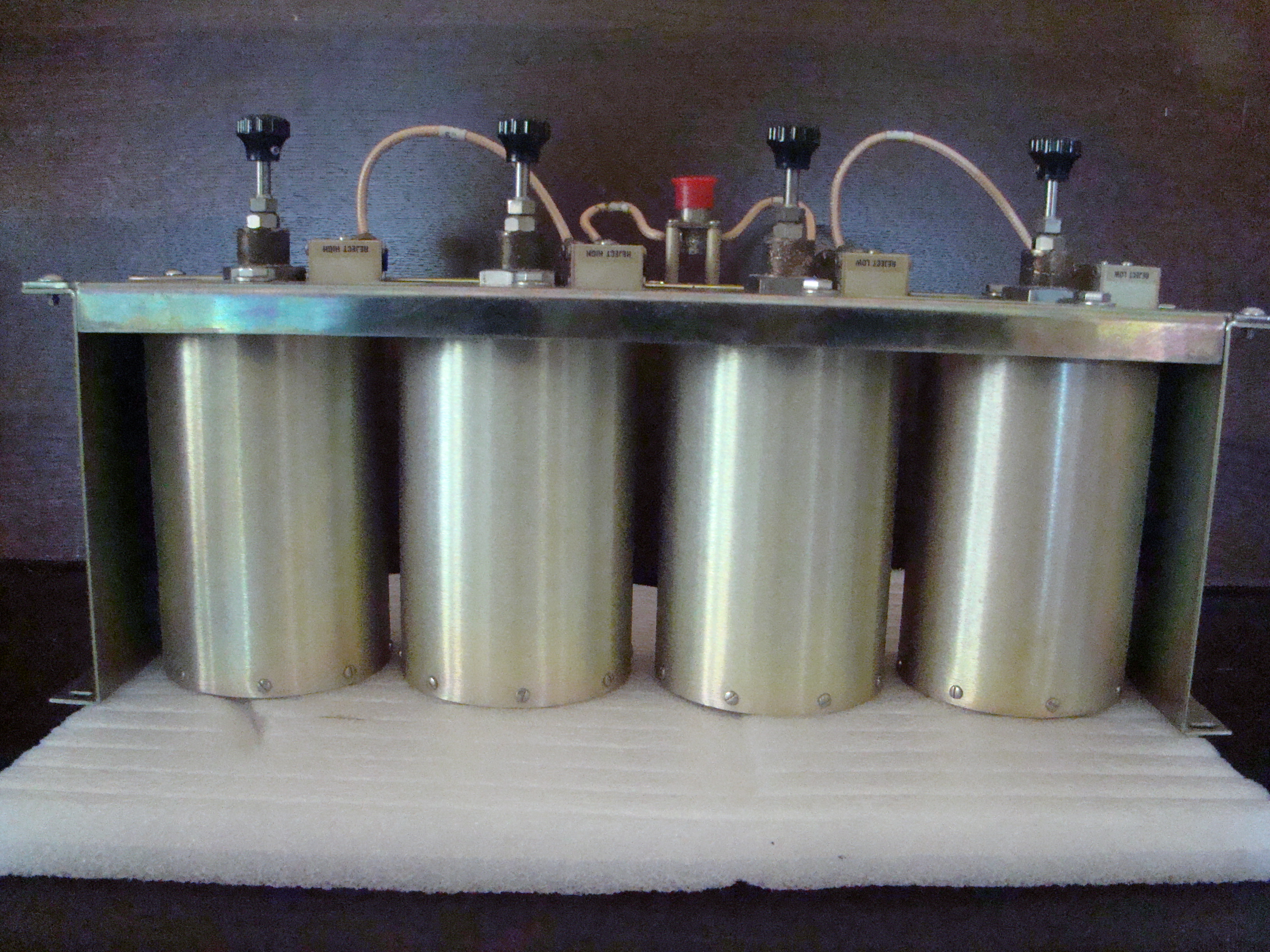

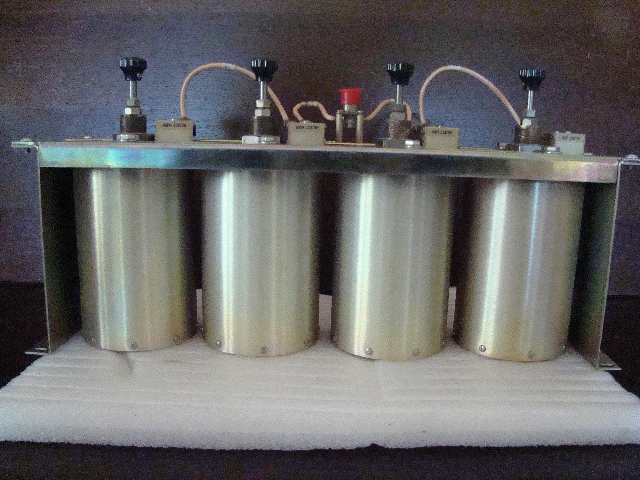

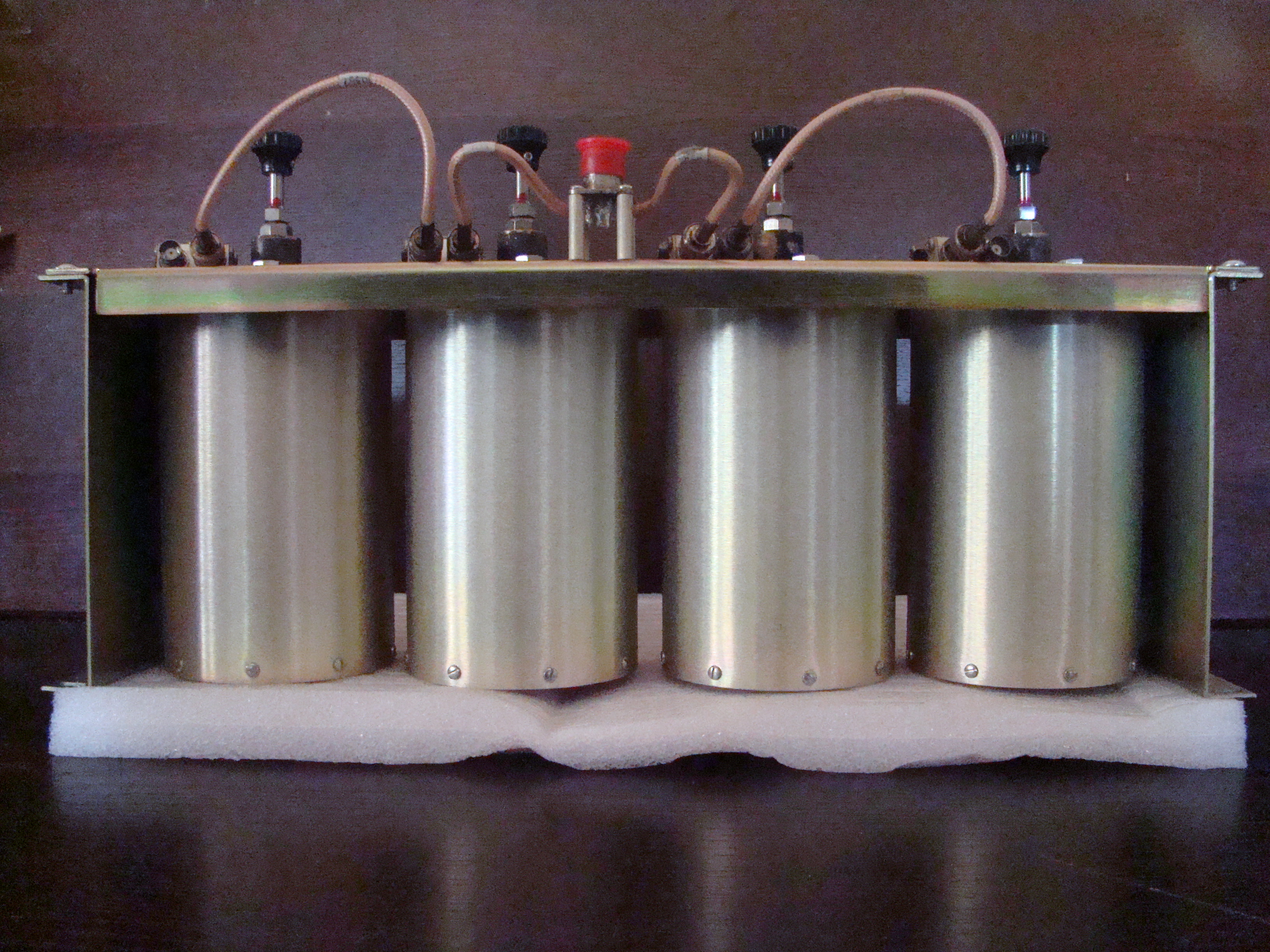

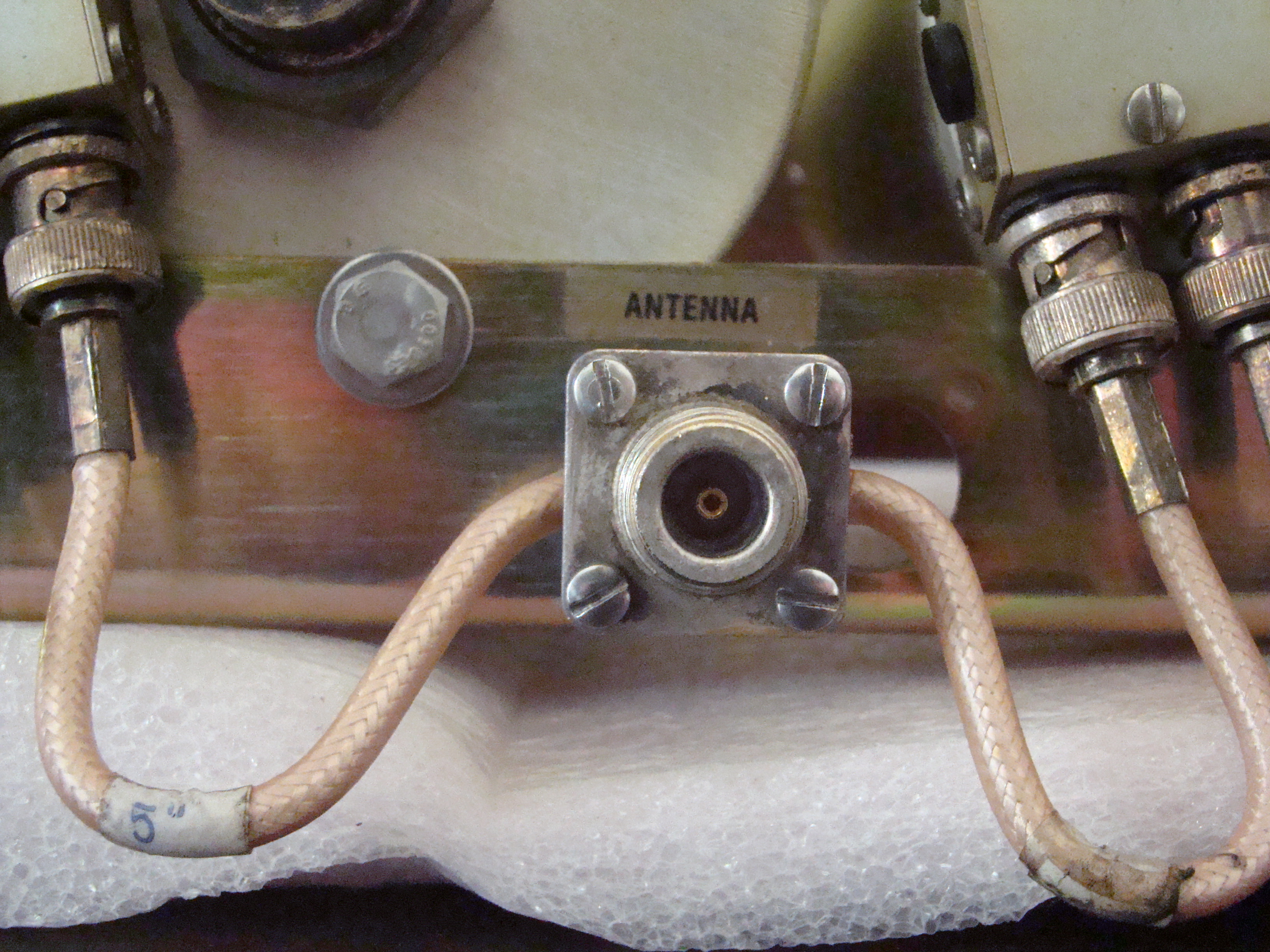

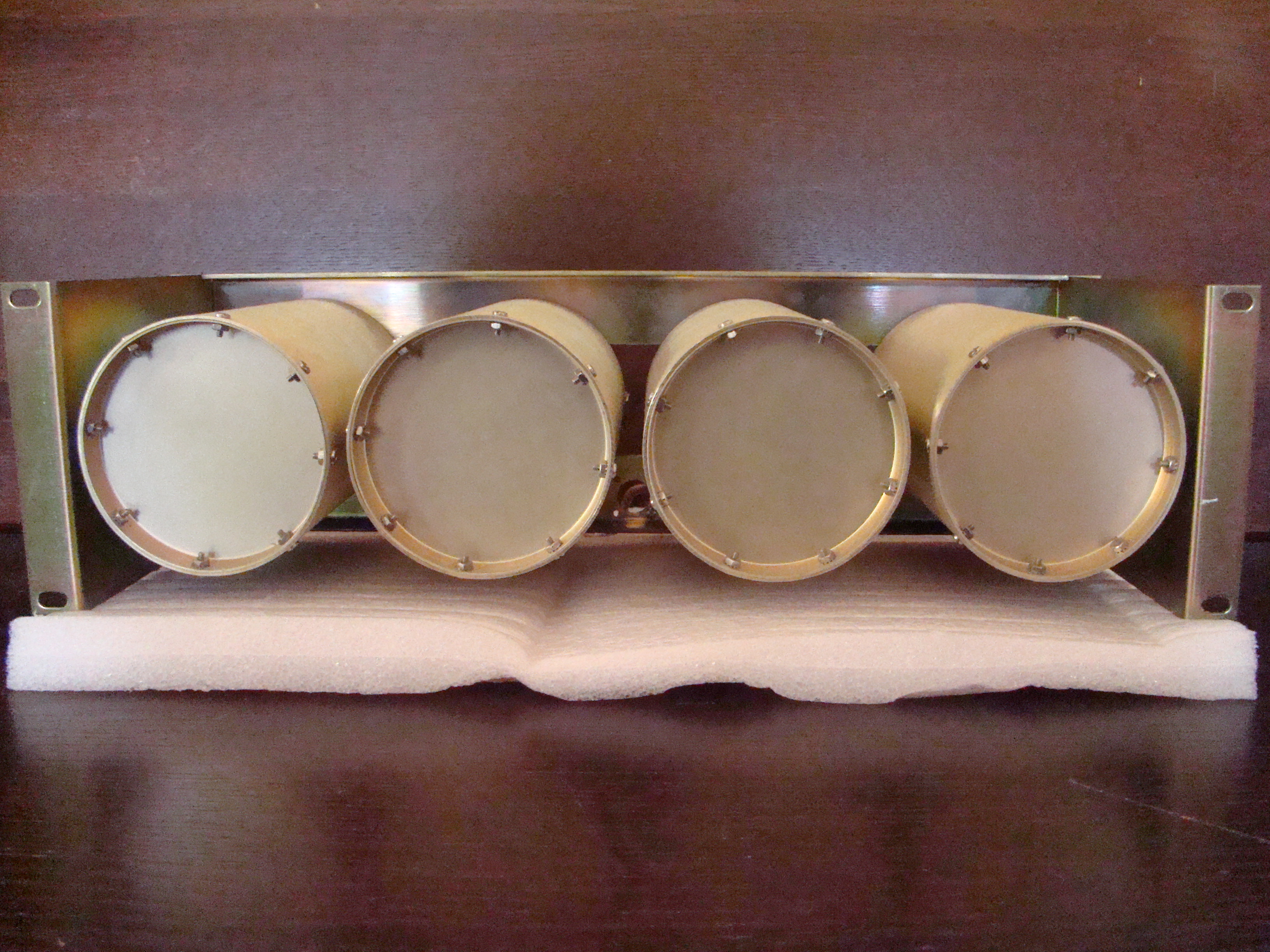

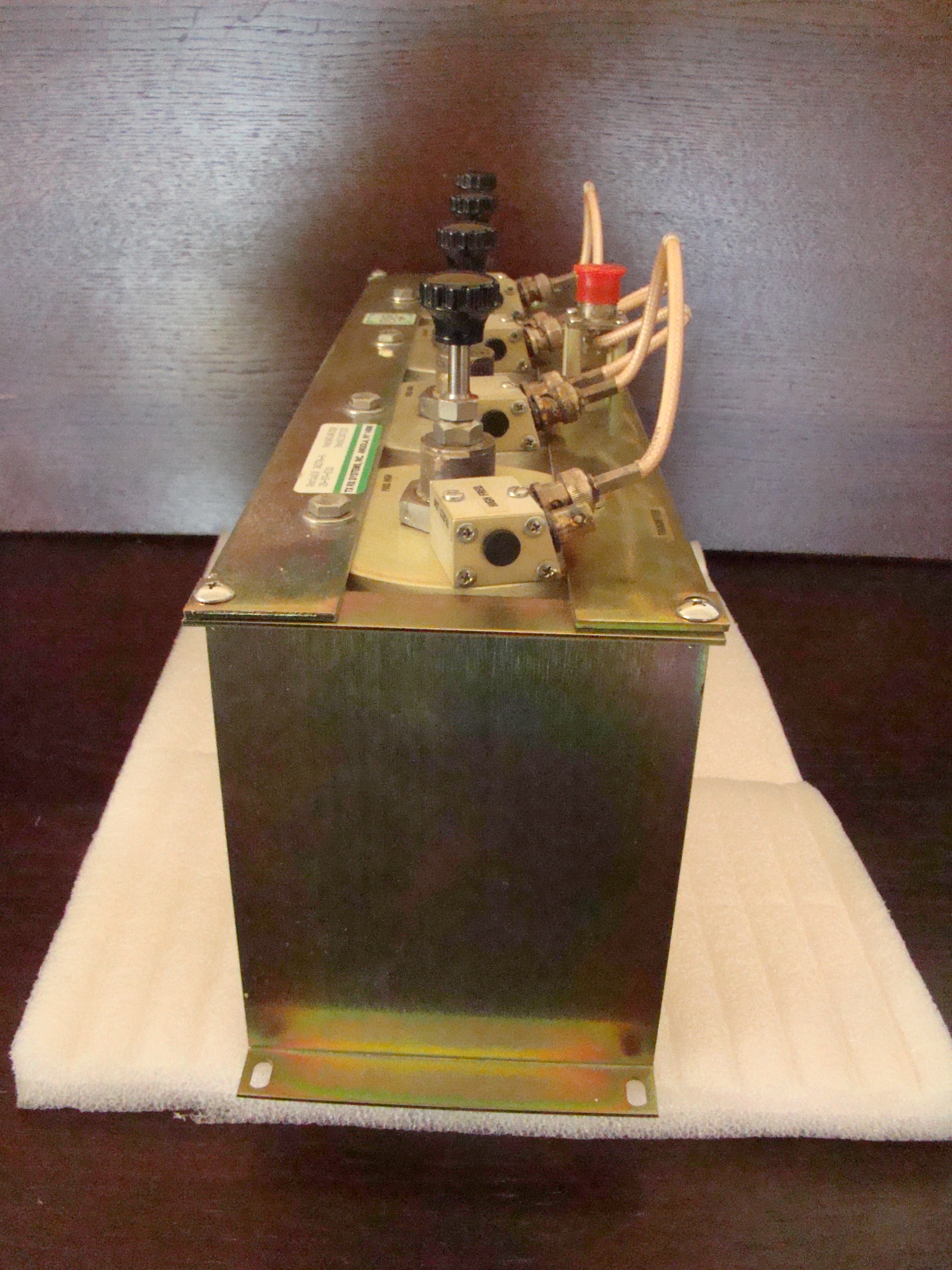

All of the photographs contained within these pages are of the unit that I have for sale.

NOTE: The photos on the additional pages are large closeup images that will take some time to load and are displayed at first in a reduced format after loading, clicking on them will allow for resizing to full resolution and scrolling will then be required.
